介紹

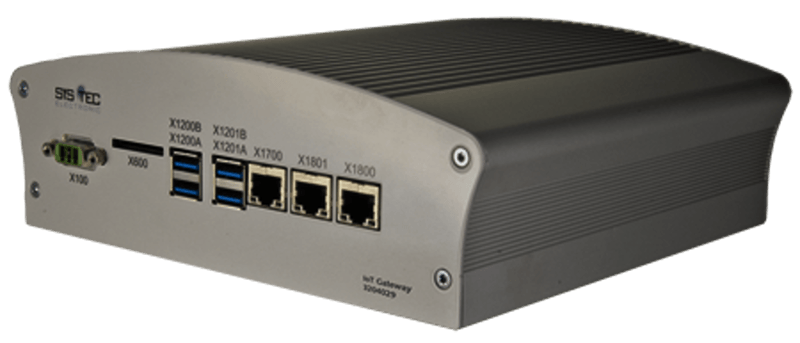

為了在現場級準備過渡到“工業4.0”，我們?yōu)橐蛱鼐W(wǎng)行業開發了即用網關解決方案。我們的IoT-網關基礎是ECUcore-1021，加上專用的應用載板，裝在IP20鋁合金外殼內。ECUcore-1021基于飛思卡爾Layerscape LS1021A，是一種嵌入式控制器，具有高密度可用通訊和I/O接口。
模塊上系統提供杰出性能又有較低功耗并且特別適用于現代工業應用的安全通訊。載板裝備大量常用高速接口例如 Gigabit Ethernet、USB3.0、SATA3.0、PCI-Express、LVDS、DVI 和 SD-卡。另外，它還支持WLAN接口板卡，通過MiniPCIe插槽連接。這種大量的板載外設特別適用于實施自己的 IoT-網關應用。該設備的零部件具有長壽命并且能夠可靠工作于工業環境溫度 -40°C 至 85°C。
文檔
| 名稱 |
類型 |
大小 |
動作 |
| E |
ECUcore-1021 - Product Flyer
|
pdf |
2 MB |
Download |
訂貨說明
| 貨號 |
說明 |
| 3204029 |
IoT-Gateway
Program download via Ethernet/UDP, SD-Card or USB-device
1GB RAM, 128MB QSPI NOR Flash, 3x 1Gb-ETH, 4x CAN, 3x USB 3.0, RS232, RS485, miniPCIexpress socket, SD-card slot, connector for mSATA-module, 1x DVI, wall mountable IP20 enclosure |
| 40040xx |
3G/4G Wireless Card
pre-installed and tested on IoT-Gateway |
| 4004036 |
64GB mSATA add-on module
pre-installed and tested on IoT-Gateway |
| 4004037 |
WIFI add-on module
pre-installed and tested on IoT-Gateway |
| 4004040 |
CAN Socket Connector
|
| 40040xx |
Power Connector |
|
|
模塊特性
| 核架構 |
Dual-ARM Cortex?-A7, 1GHz with FPU and Neon co-processor |
| RAM |
1GB DDR3L-1600MT (opt. ECC) |
| Flash |
128 MB QSPI NOR |
| 通訊 |
Up to 3x1Gb-Ethernet,
4xCAN, 4xUSB 3.0,
2x RS232, 2x RS485,
MiniPCIexpress socket (internal) |
| 海量存儲 |
SD-Card slot, Connector for mSATA-module (internal) |
| 視頻 |
1xDVI |
| 可選插件 |
WiFi, mSATA, GSM/3G (via extension cards) |
| 外殼 |
IP20 aluminum housing for DIN/EN rail mounting |
| 尺寸 |
210 x 200 x 60 (L x W x H in mm) |
| 電源 |
24VDC |
| 耗電 |
max. 2A |
| 工作溫度 |
-40°C…85°C (Storage: -55°C…125°C)
Heat spreader is integrated, fanless cooling |
| 軟件 |
Linux with device driver, preempt patches, Kernel CANopen Library
VMware with Linux and cross-development environment for Freescale Layerscape LS1021A |
| 可選軟件插件 |
IEC 61131-3 OpenPCS with CANopen Manager or CODESYS v3.5 with CANopen
CANopen Source Code
Web-Visualization for IEC 6113-3 Runtime System
OpenPOWERLINK Stack Source Code
Modbus Library |
|
