模塊特點
| 控制器: |
Freescale i.MX357 with ARM11 Core |
| 系統時鐘: |
532 MHz |
| RAM: |
128MiB DDR2-SDRAM |
| FLASH: |
128MiB NOR |
| 板載外設: |
DMA、MMU、硬件看門狗、溫度傳感器、RTC |
| Fast Ethernet: |
1x 10/100Mbps, on-board PHY |
| CAN: |
2 |
| UART: |
3 |
| USB: |
1x USB 2.0, 12Mbps full-speed
1x OTG |
| SPI/I2C: |
1/1 |
| 大容量保存: |
MMC/SD-card signals on board-to-board connector |
| LCD: |
TFT-LCD interface brought out via CMOS , resolution 1024x1024 max. 18bit |
| 工作條件: |
溫度: -40°C…+85°C
濕度: 10-90% RH, non-condensing |
| 電源: |
3.3V +/- 5%, 0.3A max. |
| 尺寸/重量 |
78 x 54 x 7,2 (L x W x H in mm), 20g |
| 板到板連接器: |
2x 2x 50 pin header socket, 1.27 mm pitch |
| 板到板連接器包含: |
2x CAN, 3x ASC, 2x USB, I2C, SPI, 2x SD-card, 18x GPIO, Ethernet, TFT-CMOS, 2x PWM/DIO, 2x Timer/Counter/DIO |
| RoHS合規性: |
是 |
| 操作系統: |
Linux以及 X 服務器和 QT 架構 |
| 集成開發環境 (IDE): |
預裝基于Eclipse IDE以及GNU C/C++工具鏈、源和匯編級調試器 |
| 補充中間件: |
CANopen?協議棧源代碼
Ethernet POWERLINK協議棧源代碼 |
|
作為PLC變型用于OpenPCS和CODESYS
ECUcore-iMX35也有PLC版本用于OpenPCS和CODESYS。CODESYS版本按需提供。
文檔
| Name |
Type |
Size |
Action |
| P |
PLCcore Whitepaper
|
pdf |
379 KB |
Download |
PLCcore-iMX35 - System Manual
|
pdf |
2 MB |
Download |
| E |
ECUcore-iMX35 - Hardware Manual
|
pdf |
604 KB |
Download |
ECUcore-iMX35 - System Manual
|
pdf |
3 MB |
Download |
ECUcore-iMX35 - Product Flyer
|
pdf |
2 MB |
Download |
下載
| Name |
Type |
Size |
Action |
| O |
OpenPCS IEC 61131-3 programming system
Version V7.1.2 RV1.00 - english |
exe |
136 MB |
Download |
| S |
SYS TEC electronic - specific extension for OpenPCS / IEC 61131-3
Version 7.1.2 RV1.00 - english |
exe |
31 MB |
Download |
訂貨說明
| 貨號 |
說明 |
| 4001025 |

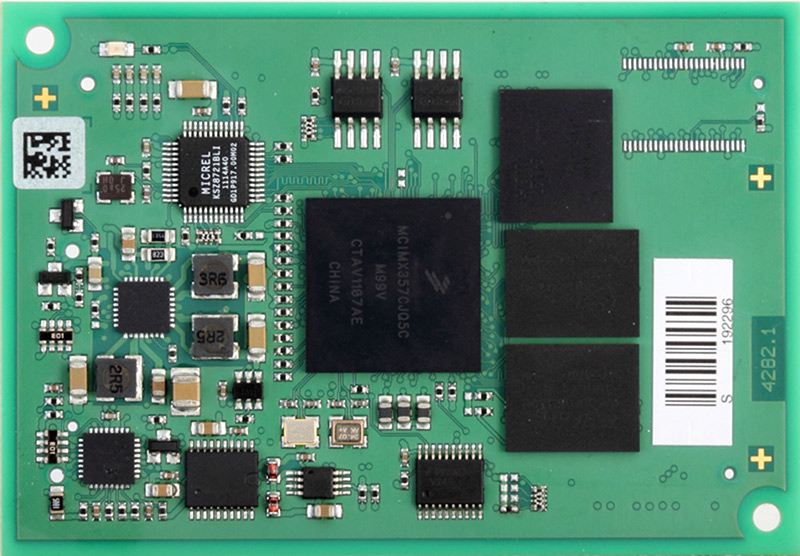

ECUcore-iMX35, Standard Version
Freescale i.MX357 mit 532 MHz, Fast Ethernet, 3 UART, 2 CAN, SPI, I2C, 128 MiB DDR2-SRAM, 128MiB Flash, CMOS-TFT-Interface |
|
