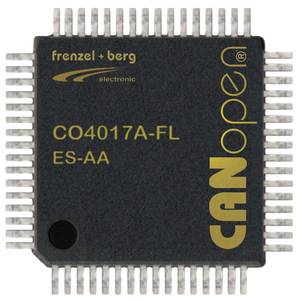

我們的CO4017A CANpopen-E/A-芯片為CANopen設備提供所有必需的功能。CANopen協議軟件實現已經做完并且經過測試，所以不需要附加的設備編程。節點數、波特率和設備配置的設置由外部電阻實現。新款CO4017A現在支持最多8路PWM輸出，以及基于PWM的24kHz頻率，帶有可編程預分頻器。?
系統
- CPU 16 Bit
- supply voltage?3.3V?/?5V?DC
- temperature range -40 .. +105°C
- housing QFP64
數字和模擬輸入/輸出
- in-/ outputs?32 max.
- filters for digital inputs configurable
- inputs digital 5V (max.) 16 of 32
- outputs digital 5V (max.) 16 of 32
- inputs analog 0 .. +5V (max.) 8 of 32
- PWM-outputs 8 of 32
功能
- output watchdog
- output overload monitoring
CANopen
- CAN-Bus V2.0b
- CAN-baudrates?up to 1Mbit
- nodenumber?1 .. 127
- CANopen draft standard DS301 V4.0 / DS401 V2.0
- CANopen diagnosis LEDs (LED outputs)
- PDOs receive/transmit 4/4
- SDOs server/client 1/0
- PDO-event timer
- PDO-inhibit timer
- PDO-transmission?mode?event triggered, synchron,?
asynchron, cyclic, anti cyclic, remote frame
- variable PDO-identifier
- dynamic PDO-mapping
- emergency
- nodeguarding/lifeguarding/heartbeat
- objectdictionary / configuration storable
- minimum boot up
- EDS-file
|
訂貨說明
| 貨號 |
名稱 |
| EZ00000.2027.01 |
CO4017A-FL |
| EZ00000.2017.01 |
CO4017AE-BD (BD-Board) -40..105°C |
| EZ00000.2007.01 |
CO4017A-BD (BD-Board) |
